Description
Product Description:

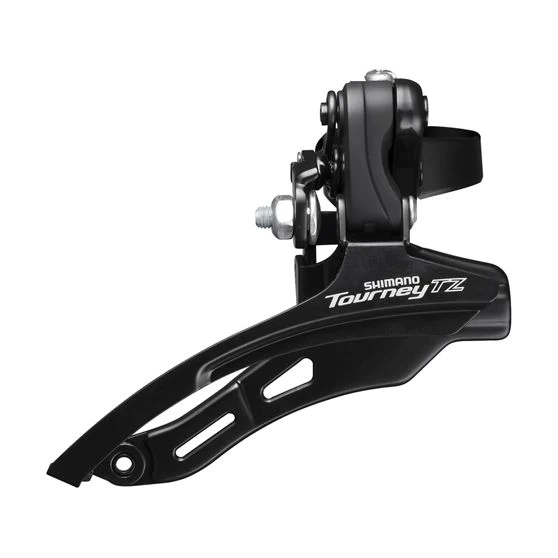

SHIMANO TOURNEY TZ – Front Derailleur – Down Swing – Clamp Band Mount – 3(friction)x8/7-speed
The SHIMANO TOURNEY TZ500 front derailleur is compatible with 3×6 speed drivetrains and 48-38-28T chainrings.
Specifications:
| MODEL NO | FD-TZ500-DS6 |
|---|---|
| SERIES | TOURNEY TZ500 Series |
| Color | Series color |
| Action_Down Swing | ✔ |
| Applicable Top-Mid tooth difference | 8T |
|---|---|
| Cable route type_Down-Pull exclusive | ✔ |
| Cable route type_Top-Pull exclusive | ✔ |
| Chain line (mm) | 47.5 |
| Chain stay angle (deg.) | 66-69 |
| Compatible chain | HG-UG 7/6-speed |
| Mount_Clamp Band (mm)_28.6 | ✔ |
| Mount_Clamp Band (mm)_31.8 | ✔ |
| Top gear teeth | 42T |
| Total capacity | 18T |
| Front speeds | 3 (friction) |
| Rear speeds | 7/6 |
