Description
BENEFIT
- 44-32-22T
- HYPERDRIVE SG-X chainrings
- With Chain Guard, without Chain Guard
- Color options: Black, Silver
SPECIFICATIONS:

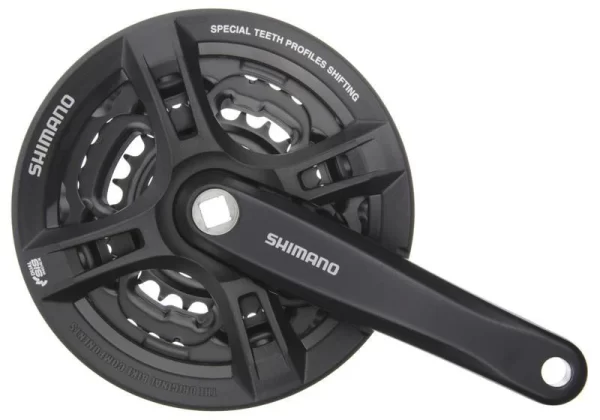

| MODEL NO | FC-M371 |
|---|---|
| SERIES | SHIMANO ALTUS M370 Series |
| Color | Black, – |
| Axle length of BB-UN/ ES (mm)_Threaded (chain case) | LL123-K |
| Axle length of BB-UN/ ES (mm)_Threaded (normal) | LL123 |
| Chain case compatible | X |
| Chain line (mm) | 50 |
| Chain ring combination | 44-32-22T |
| Compatible BB type_Square | X |
| Compatible BB type | Square |
| Compatible chain | HG for 9-speed |
| Crank Arm Length | 170mm |
| Crank fixing bolt included | X |
| Crank arm length (mm)_170.0 | X |
| Crank arm length (mm)_175.0 | X |
| Gear arms | 4 arm |
| Optional chain guard_With chain guard | X |
| Optional chain guard_Without chain / bash guard | X |
| Optional Chain Guard | With chain guardWithout chain / bash guard |
| P.C.D. (mm) | Riveted |
| Rear speeds | 9 |
| Recommended BB_Threaded (chain case) | BB-UN26-K |
| Recommended BB_Threaded (normal) | BB-UN26 |
| Threaded BB shell width_68mm | X |
| Threaded BB shell width_73mm | X |
| Threaded BB Shell Width | 68mm, 73mm |
| Crank arm fixing bolt_With | X |
| Includes Crank Arm Fixing Bolt | Yes |
| Q-factor (mm) | 180.5 |
