Description

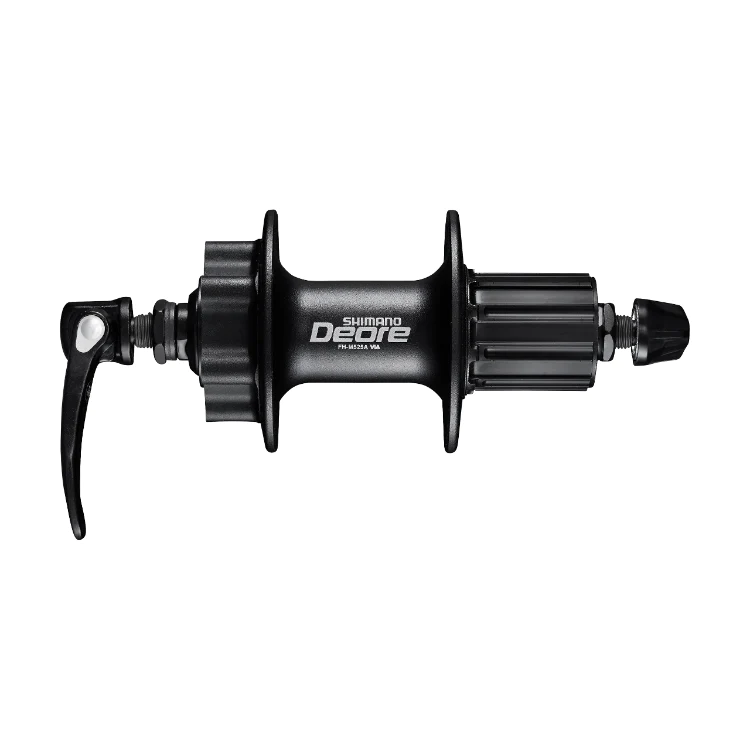

SHIMANO – Rear FREEHUB – 6-Bolt Disc Brake – Quick Release -8-10 speed, MTB 11-speed
For use with 6-bolt disc brake rotors and quick release dropouts, the SHIMANO FH-M525A rear hub is available in silver and black and compatible with 8/9/10-speed cassettes+ 11 speed mtb cassettes
- 6-bolt disc rotor mount
- Double contact sealing
- Super polished bearing races
- Ultra-smooth bearing race surfaces provide a precision low-friction rolling action
- Light alloy quick release
- Quick release lever and adjusting nut are made from light alloy
- Cup & Cone Bearing
- Color options: Black
PRODUCT SPECIFICATIONS
| MODEL NO | FH-M525A |
|---|---|
| SERIES | SHIMANO |
| Color | Black |
| Average weight | 435 |
| Axle fixing method | Quick release |
|---|---|
| Bearing_Cone | CBN |
| Brake Type | 6-bolt disc brake |
| Flange diameter Left/Right (mm) | 70.6 |
| Flange distance (mm) | 57.1 |
| O.L.D. (mm) | 135 |
| Offset (mm) | 6.8 |
| P.C.D. left / right (mm) | 61/61 |
| QR_Skewer Length_168mm | ✔ |
| QR_Skewer Length_173mm | ✔ |
| QR lever_Color | Black | Black |
| Seal_Freehub body | Contact |
| Seal_Hub | Labyrinth & Contact |
| Speeds | 8-10 speed, MTB 11-speed |
| Spoke holes_36H | ✔ |
